Structural anchoring

Peter Cox are specialists at using structural anchoring and reinforcement systems, providing solutions for structures, including historical buildings, masonry bridges, monuments, railway structures and walls. Masonry anchors can also be used to create secure fixings on facades, walls and structures providing a solution to fit your project.

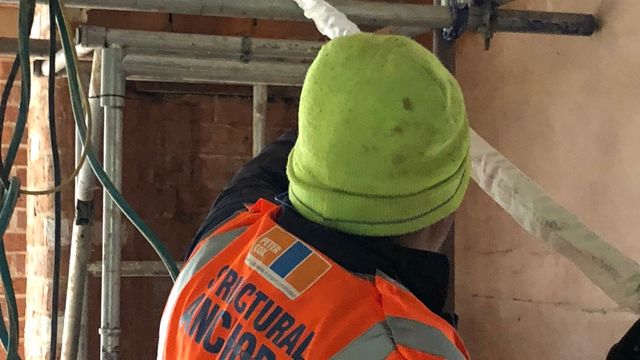

The mechanically grouted masonry anchors use a sock system to stabilise damaged masonry, with the sock expanding to form a strong bond. These are purpose designed for each project or application, and are highly versatile. They are highly effective in poor quality materials, and for bridging cavities in walls or structures. The versatile nature of this product means it can be used for a vast array of projects, as it can be customised to any specification.

The anchoring system can be used on an array of materials, from stone, concrete, clay, terra cotta, adobe and even timber. It can also be used underwater and in weak substrates.

Book A Survey Now

The structural anchoring and reinforcement installation process

  • Drilling: - Installation holes are created in the masonry using a wet diamond drilling process with extra drill bits added as required to achieve hole depth.

  • Inserting anchor: - for stabilisation work anchor lengths are typically 1-11metres in length. Its essential that care is taken so the polyester sock surrounding the stainless steel bar isn't punchered.

  • Injecting the grout: - The cementitious grout is site mixed and then sieved before pouring into a pressure pot, operating between 2 and 4 bar. The grout is forced into the sock around the anchor, filling out the cavity that's been drilled. The grout will begin to harden are approx. one minute.

  • Anchor sections: - The grout is injected through the rod using hollow section anchors. When solid single or multi bar sections are used, a separate injecting tube is inserted into the fabric sock. Threaded rods can be used to facilitate fixing attachments to the anchor head - for tie bar extensions or support brackets.

  • Surface repair: - Drilling holes are covered, meaning that the repair will be almost invisible - perfect for work done on historic buildings or structures.

Benefits and typical applications

  • Benefits of Masonry Anchors

    • Purpose designed for each application
    • Versatile in use
    • Can be used in weak substrates
    • Effective in poor quality materials and for bridging cavities
    • Invisible when installed
    • Fire resistant
    • Cementitious based and therefore sympathetic to the original structure
    • Approved by heritage authorities
    Typical Applications

    • Stabilising different types of masonry: solid, cavity, hollow pot and rubble filled
    • Used as Lateral restraints
    • Replacement and supplementary wall ties

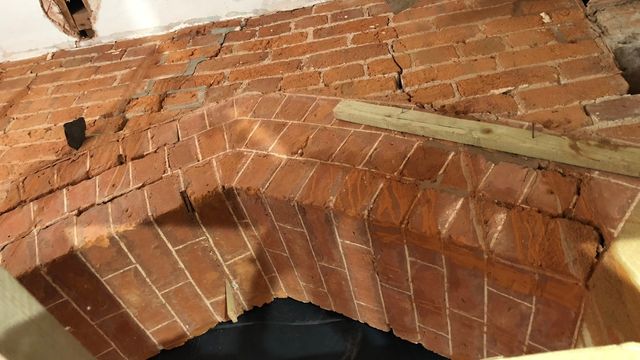

    • Crack stitching
    • Stitching anchors e.g. for arch consolidation
    • Stud anchors
    • Parapet wall strengthening
    • Retaining wall anchoring

Lateral Restraint - Wall to Floor Joists

Lateral Restraint - Wall to Floor Joists

Stitching Anchor for Rubble Filled Wall

Stitching Anchor for Rubble Filled Wall

External Wall anchored to Internal Wall

External Wall Anchored to Internal Wall

Arch Consolidation

Arch Consolidation

Approved installers of Cintec and Helifix structural anchors

Peter Cox technicians are approved installers of the Cintec structural anchoring and reinforcement system across the UK. We are unique in that we have considerable experience of working to stabilise major projects and can calculate the anchor design and specifications by working with structural engineers.

Cintec structural anchors

The Cintec reinforcement and anchoring system is comprised of a stainless steel bar surrounded by a woven polyester fabric mesh sleeve into which a specially formulated cementitious grout is injected under pressure. The flexible sleeve expands and moulds itself into the spaces within the wall, providing a strong mechanical and chemical bond when cured. Various attachments can be welded to the anchor head. Cintec masonry anchors are purpose designed for each project or application, and are highly versatile.

Helifix ‘SockFix’ anchor system

The ‘SockFix’ anchoring system from Helifix is a mechanically grouted system for stabilising damaged masonry.  Helifix’s structural anchoring system is a permanent and economical solution with a multitude of applications such as wall stitching and securing unstable walls and arches. Furthermore the system is  non-disruptive and fully concealed, allowing the building to retain its original appearance.
